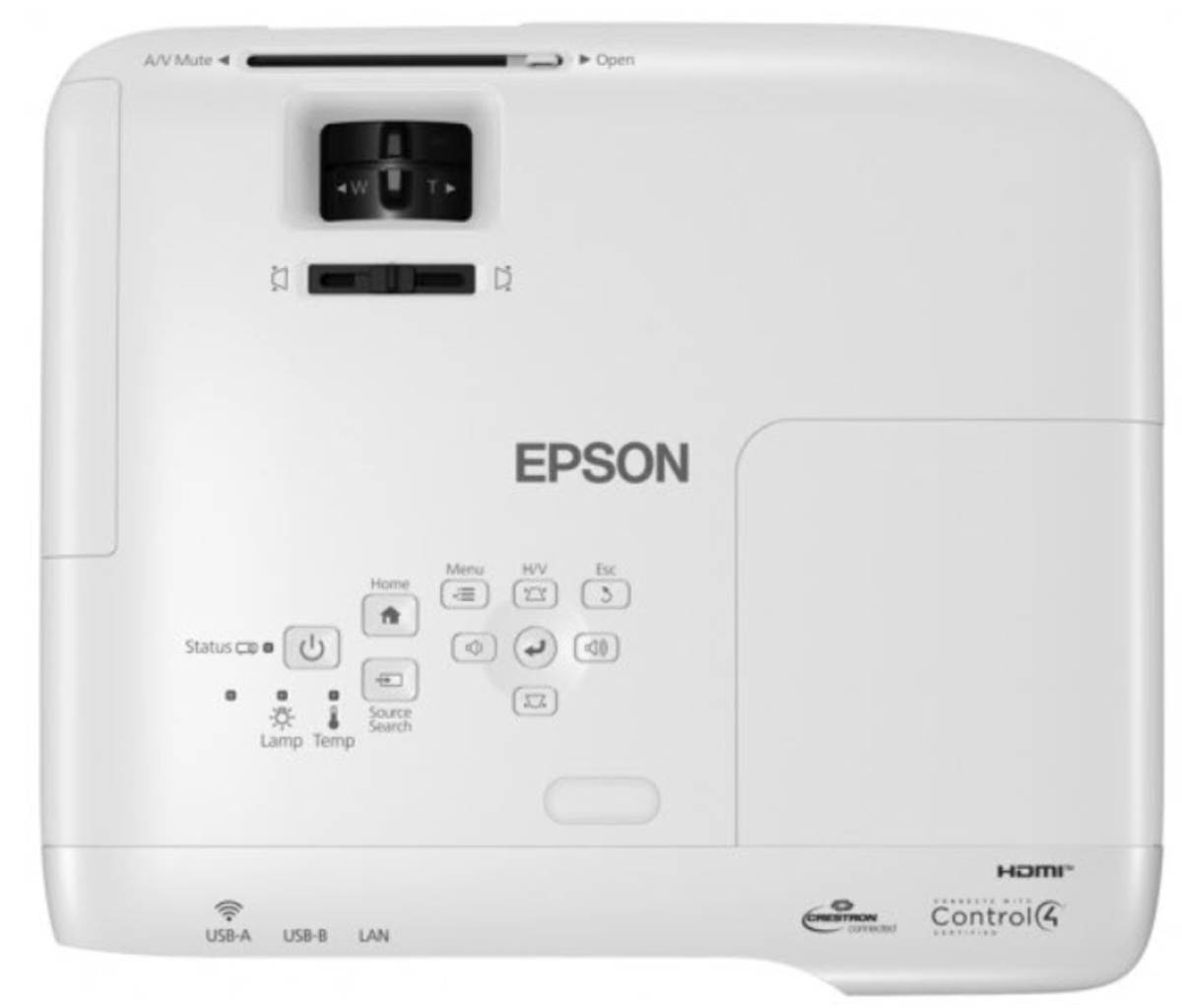

Epson EB-982W Projector 3LCD Technology Product Description

Introduction

The Epson EB-982W is a high-performance WXGA projector that uses 3LCD technology to deliver vivid, bright, and detailed projections for educational and business environments. Designed to cater to a wide range of presentation needs, the EB-982W offers an outstanding combination of high brightness, crisp image quality, and flexible connectivity options, making it ideal for classrooms, meeting rooms, and small to medium-sized venues. With a 4200-lumen brightness and a high contrast ratio of 16,000:1, the Epson EB-982W ensures bright and clear visuals even in ambient light settings.

This projector features WXGA resolution (1280 x 800), offering a widescreen display for presentations, videos, and other multimedia content. Whether you’re giving a lecture, hosting a business meeting, or showcasing a multimedia presentation, the EB-982W delivers exceptional performance with easy installation, flexible connectivity, and long-lasting reliability.

Key Features of the Epson EB-982W Projector

1. 3LCD Technology for Bright and Accurate Colors
   The 3LCD technology in the Epson EB-982W ensures that colors are projected with outstanding accuracy and brightness. This technology delivers bright white light and vibrant color brightness, making sure your presentations stand out, even in well-lit environments. The result is vivid and true-to-life colors, with no loss of brightness.

2. High Brightness of 4200 Lumens
   With a 4200-lumen brightness, the EB-982W can project crisp and clear images in a variety of lighting conditions. Whether you’re using the projector in a bright classroom, meeting room, or conference hall, this projector will maintain excellent image quality even with ambient light.

3. WXGA Resolution (1280 x 800)
   The Epson EB-982W offers WXGA resolution (1280 x 800), which is ideal for wide-screen presentations. The aspect ratio of 16:10 is perfect for modern content, ensuring that videos, slides, and images are displayed in sharp, crisp detail with high clarity.

4. High Contrast Ratio of 16,000:1
   With a contrast ratio of 16,000:1, the EB-982W ensures deeper blacks and more detailed shadow areas. This enables greater contrast between bright and dark parts of the image, producing clearer and more vivid projections, which is especially important for presentations with multimedia elements.

5. Flexible Connectivity Options
   The Epson EB-982W comes equipped with a wide range of input and output ports for enhanced connectivity:

   • HDMI input (2x) for high-definition video and audio
   • VGA input (2x) and VGA output for easy connection to laptops, desktops, and other devices
   • USB 2.0-A and USB 2.0 for connecting external devices and projectors
   • RS-232C for remote control of the projector
   • Ethernet Interface (100 Base-TX/10 Base-T) for network connectivity
   • Wireless LAN (optional, 5GHz) for easy wireless connection to a range of devices
   • Audio input/output (including jack plug in/out, cinch audio out) for connecting audio devices.

6. Long Lamp Life (Up to 6,000 hours)
   The Epson EB-982W has an impressive lamp life of up to 6,000 hours in eco mode, ensuring reduced maintenance costs and hassle-free operation. The 60-month warranty (or 1,000 hours lamp life, whichever comes first) guarantees that you get long-term reliability and performance from your projector.

7. Quiet Operation
   Designed to run quietly, the EB-982W operates at less than 37 dB in normal mode and less than 28 dB in economy mode, ensuring minimal disruption in quiet environments like classrooms or meeting rooms.

8. Easy Installation and Setup
   The projector features a zoom lens with a 1.2x optical zoom, as well as vertical keystone correction to ensure quick and easy image alignment and installation. The lens shift feature allows for greater flexibility in projector positioning, while the auto setup feature makes initial setup easy and fast.

9. Interactive Features
   The Epson EB-982W can be paired with optional interactive tools to create an interactive learning or presentation environment. It works well with interactive pens, allowing users to interact with the projected content, enhancing engagement and participation.

10. Compact and Portable Design
    Despite its high-performance capabilities, the EB-982W is compact and lightweight, weighing just 3.1 kg (6.8 lbs). Its design makes it easy to transport and install in various settings, such as classrooms, boardrooms, and other professional spaces.

11. Energy Efficiency
    The Epson EB-982W is designed to be energy-efficient. It consumes only 260W in operation and drops to <0.5W in standby mode, minimizing energy use and lowering operational costs over time.

Specifications

• Model: Epson EB-982W
• Technology: 3LCD with White and Color Brightness of 4200 Lumens
• Resolution: WXGA (1280 x 800), 16:10 aspect ratio
• Brightness: 4200 lumens (normal), 2600 lumens (economy mode)
• Contrast Ratio: 16,000:1
• Lamp Life: Up to 6,000 hours (eco mode)
• Inputs/Outputs:
  • 2 x HDMI Input
  • 2 x VGA Input, 1 x VGA Output
  • USB 2.0-A and USB 2.0
  • RS-232C
  • Ethernet Interface (100 Base-TX / 10 Base-T)
  • Audio In/Out (Jack plug in/out, Cinch audio out)
  • Wireless LAN (optional, 5GHz) for wireless projection
• Audio: 16W built-in speaker
• Dimensions:
  • Width: 30.4 cm (11.97 inches)
  • Depth: 26.0 cm (10.24 inches)
  • Height: 9.2 cm (3.62 inches)
• Weight: 3.1 kg (6.8 lbs)
• Power Consumption: 260W (normal), <0.5W in standby mode
• Operating Temperature: 5?C to 35?C
• Warranty: 60 months Carry-in warranty
  • Lamp: 60 months or 1,000 hours (whichever comes first)

Benefits and Advantages

1. High-Quality Visuals
   The 4200-lumen brightness and 3LCD technology ensure that presentations and videos are displayed with exceptional clarity and vibrant colors, even in environments with ambient light. The 16,000:1 contrast ratio provides a deeper and more engaging viewing experience, especially for dark scenes or detailed images.

2. Cost-Effective Maintenance
   The long-lasting lamp life of 6,000 hours (in eco mode) significantly reduces maintenance costs and downtime. With a 5-year warranty and long-lasting performance, users can rely on the EB-982W for continuous, hassle-free operation in classrooms and business settings.

3. Flexible Connectivity Options
   The EB-982W comes with a variety of connection options, including HDMI, USB, VGA, and Ethernet, enabling users to connect a wide range of devices and share content effortlessly. Optional wireless LAN support allows for seamless device connections without cables, making presentations more dynamic.

4. Energy Efficiency
   The EB-982W is designed with energy-saving features that help lower operational costs. Its low standby power consumption and efficient lamp technology ensure that the projector performs optimally while minimizing electricity usage.

5. Easy Installation and Setup
   With auto setup, vertical keystone correction, and lens shift, the EB-982W allows for quick and straightforward installation in a wide range of environments, ensuring that users spend less time on setup and more time on presentations.

6. Interactive Capabilities
   The ability to add optional interactive features for engaging presentations or lessons makes the EB-982W a versatile tool for classrooms and corporate training rooms. Interactive pens and whiteboard capabilities can further enhance learning or collaboration sessions.

7. Compact and Portable
   The lightweight design of the EB-982W ensures that it can be easily transported and set up in different locations. Its small footprint means it can fit into tight spaces while still delivering exceptional performance.

8. Quiet Operation
   With low noise levels in both normal and economy modes, the EB-982W ensures that the focus remains on the presentation or content without distractions from the projector?s operation, making it perfect for professional settings and classrooms.

Use Cases

1. Education
   The Epson EB-982W is perfect for use in classrooms, lecture halls, and training centers. The high brightness and clear image quality make it ideal for educational settings, allowing teachers and trainers to deliver engaging lessons to large groups of students, even in rooms with ambient lighting.

2. Business and Corporate
   In meeting rooms and conference spaces, the EB-982W is an excellent choice for high-quality presentations and video conferencing. Its wide range of input options and flexible connectivity features make it easy to connect laptops, mobile devices, and other presentation tools.

3. Home and Entertainment
   While the EB-982W is geared towards educational and professional use, its high-resolution display and exceptional brightness make it a great option for home theaters or entertainment setups, ensuring vivid visuals for movies, sports, or gaming.

Installation and Setup

1. Place the Projector: Install the projector on a ceiling mount, place it on a table, or position it in a suitable location. Make sure there’s enough room for lens shift and zoom adjustments.
2. Connect Devices: Use the HDMI, VGA, or USB ports to connect your laptop, computer, or other devices. Alternatively, set up wireless LAN (optional) for a wireless connection.
3. Adjust the Image: Utilize the vertical keystone correction and lens shift for proper alignment and image adjustment.
4. Start the Presentation: Once everything is connected, turn on the projector and start presenting.
